Offshore Cranes

offshore cranes

It’s also known as offshore pedestal crane;

Haitai cranes have been working in the offshore crane for many years, and the technology is far ahead. Our cranes can be delivered with a hydraulic power unit (HPU) or an electric winch, and the hydraulic power unit (HPU) and winch can be located on the crane or below deck.All movements, including tension modes and auxiliary and towing winch functions are integrated in a powerful and intuitive in-house designed control system.

working range:Up to SWL 50t

MOQ：1 sets

APPLICATIONS

Offshore oil production

The offshore cranes are lifting equipment designed specifically for the marine environment, with a high degree of safety, reliability, maintainability, wind resistance and corrosion resistance.

Ship operations

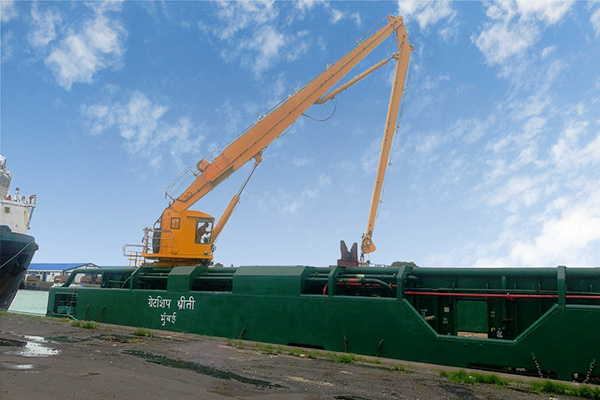

In the process of ship construction, maintenance and replenishment, marine cranes play an important role, such as lifting cargo, lifting personnel and so on. Haitai specializes in the production of marine cranes with high stability and efficiency, especially suitable for the more adverse working environment;

underwater operation

Offshore cranes can also perform tasks such as launching and retrieving equipment for underwater operations.

If you have any requirements, click below to contact us, we can customize according to your demand, look forward to your cooperation!

Features & Advantages

1.Lifting capacity range from 1t to 40t SWL
2.Outreach from 10m to 40m
3.Cranes can be designed as fixed-boom or knuckle-jib or telescopic -boom type
4.LMl system
5.Fully-equipped,spacious, air-conditioned, ergonomically designed operator cabin
6.Certified for ship-to-ship operations(optional)
7.Certified for personnel lift(optional)
8.Equip the hydraulic system with an air cooler(optional)
9.Crane can be designed to work in explosion-proof areas(optional)

Maine parameters

Model	Capacity(t)	Outreach(m)	Lifting speed(m/min)	Hook travel(m)	Slewing speed(m/min)
SWL02-00	2	20	0-20	50	0-0.5
SWL03-00	3	30	0-20	50	0-0.5
SWL05-00	5	30	0-15	50	0-0.5
SWL10-00	10	30	0-12	50	0-0.5
SWL20-00	20	30	0-12	50	0-0.5

options

1.Tug winch
2.Special high lift mode of the jib crane
3.Wire rope integrity monitoring system
4.Constant tension/automatic tension system
5.Active wind and wave compensation
6.Dual compensation ship-to-ship transfer system
7.Dynamic load calculator with planning tool integrated into crane control system
8.Satellite online support system with remote diagnostic function
9.Other special features are available upon request

Quality guarantee & our services

1. In equipment quality guarantee period, the equipment itself because of quality problems caused by equipment damage or can not normal use and normal maintenance of equipment, we are free repair or replacement of damaged or failed parts (not including wearing parts).

2. The normal quality assurance of the equipment put into use for one year.

3. Quality guarantee period, we paid long-term supply of spare parts, and products to the permanent maintenance, replacement parts and maintenance costs will depend on the cost of appropriate charges

4. Professional technical staffs provide installation, commissioning and training services.

5. Delivery with user manual, parts manual, product certificates and other relevant certificates.
